5th Wheel Wrecker

Fifth Wheel Wrecker Boom

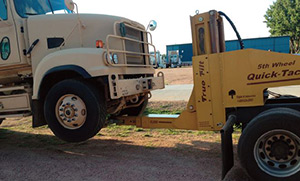

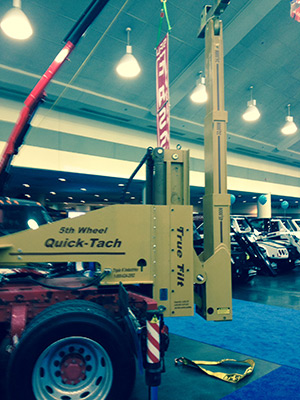

The True Tilt 5th Wheel Quick-Tach is a heavy duty under lift that has the most extension, most retraction, more tilt and the most lifting capacity of any lift on the market. It has a lift rating of 45,000 pounds retracted and 24,000 fully extended. It has a clear extension of 140" to the center of the axle forks and nearly 160" to the center of the Heavy Duty Wheel forks when used. The unit will tilt the full rated load in the given positions. We use 16 nylon wear pads in the boom section, using the nylon pads both top and bottom of the sections. The main unit rolls up and down the mount on large 6 inch diameter rollers. The rollers give no friction in the up and down movement, so heavy loads can be lifted with no friction loss. The boom sections are made of 100,000 pound steel. This allows us to keep the boom height profile very short. Also, the nylon pads are set into pockets milled into the boom sections, allowing us to only have only 1/4" clearance between boom sections. This allows us to keep the overall boom height section very low to accommodate aerodynamics and low profile bumpers. The hydraulic hoses are all “hidden” in the unit, encased in a nylon tracking chain to keep them in place free from wear and tear. Our crossbar is made of a one piece solid steel casting made of 100,000 pound steel. The tongue it rotates in is also one piece cast steel (100,000 pound steel).

We use spring steel "Connex" bushings throughout the unit, in every place there is a heavy weldment or forging. We use 2 1/2" pins throughout the unit and a 3" pivot pin on the crossbar. We use a wide stance on our mount and pins, especially the hinge pin so the unit can handle the huge stresses that are induced especially while backing towed vehicles around corners into tight quarters. In that situation, large stresses are transmitted to the hinge and mount sections of the lift unit. We have standard wireless radio built into the unit. The radio is a standard feature with a 6 function controller that will control the lift for up-down; in–out; and tilt up–tilt down operation. We can attach a winch to the gooseneck. We utilize a 750 Holmes boom head attached to the top of the vertical boom. The main unit can be used as a stiff leg during winching operations. We can include a 10 function radio to also operate the winch with the radio control, operating the in and out on the winch and incorporating an air valve with the radio to operate the freespool on the winch. This is an optional option.

The unit is shipped as either an electric/hydraulic or with a valve pac to be powered by the trucks PTO system. The electric/hydraulic is a self-contained unit utilizing two electric pumps for increased volume and speed of the hydraulics. There is also a fail-safe built in so that if one motor fails, the other will continue to function the unit. This unit is provided with battery cable to hook into your trucks battery for the power source.

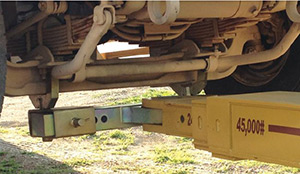

The valve pac system incorporates a valve manifold that will attach to a truck’s PTO pump system. It has a built-in flow regulator to adjust the volume of the oil going to the lift unit. The manifold has an open port to attach an additional valve to operate a winch. The winch valve port is unrestricted, so the winch can be operated at the full capacity of the pump even though the lift unit is restricted. Our unit pricing includes either an electric/hydraulic pump or a valve pac to tie into your truck’s PTO pump; the 6 function wireless radio control plus a 25’ hard wired remote control; 4 sets of axle frame forks; the parking stands; and all necessary hardware to mount to a road tractor.

As options, we have available the heavy duty wheel fork set. Also offered is a boom head, or a winch mount is available if you want to attach a winch to the unit. We have the hydraulic valve and air valve kits available for the winch with the 10 function radio. The units are shipped with the gooseneck unattached to the main mount bracket. The entire lift is assembled. The pump or valve and radio are mounted in the gooseneck. The customer will only have to mount the gooseneck to the mount bracket and install 6 hydraulic hoses between the pump valves and lift unit once the unit arrives.

5th Wheel Wrecker - Request More Info
